Industrial Monitoring

• Enables the customer to measure and document the energy consumption, temperature, humidity of any powered device in a completely automated manner
• Predictive maintenance use cases such planning maintenance cycles at the points of use and optimizing logistics for machine spares
• Improving processes and increasing productivity can be implemnted with this solution
• Mobile transfer of the collected data to the central cloud storage

• TI Cortex A8, 800MHz DDR3L 256MB RAM
• Micro-SD Slot
• 4 x RS-232/485 isolated serial ports
• 2 x 10/100 Base-T Ethernet ports
• Mini-PCIe for WIFI/3G/GPRS/4G Support web service for remotely on-line monitoring Support SD card & on-line firmware update Support Modbus
• IEC-60870-101/104 protocol Support Data logger on SD card Operation System: RT-Linux Operation Temperature -40~70°C

• 5G NR Cellular Connectivity, Sub-6GHz
• 3GPP Release 15, Support both NSA and SA modes
• Quad-core CPU with 1 GB RAM
• 2 x SIM, eSIM Ready, TPM 2.0
• 5 x Gigabit Ethernet
• SFP Connector for SFP modules up to 10 Gbps
• RS232, RS485, CAN BUS, GNSS Receiver, 2 x DI, 2 x DO, USB Host, Micro SD Card
• Robust metal cover with wall and DIN mount options
• Wide operational temperature range

• solution for the holistic digitization of production processes
• serving as a network device, embedded device, software application, and host device
• Open-industry development allows for universal compatibility and usage
• best-in-class security anchored in all aspects of the product design
• Especially suitable for equipping old and existing systems
• Faciliates the optimization of costs, quality, productivity, and energy consumption

• IoT Industry PC with an especially flexible interface concept (SIODI)
• Enables the customer-specific adjustments for many applications
• The compact, robust design of the Industry PC is specifically designed for the installation in outdoor facilities as well as the use in rough environments
• Enables a maintenance-free operation at a temperature from -40°C up to +60°C

• 4G LTE Cat 1
• Software development capability
• Integrated GPS for reliable asset tracking
• An Ethernet port, a serial port and software configurable I/O ports for connection flexibility
• USB OTG port to connect a local storage device
• Ignition sense capability and a wide input voltage range for vehicular applications
• Rugged industrial design for harsh environments
• Easy and clear LED status display for connection status, connected network type, and connection errors

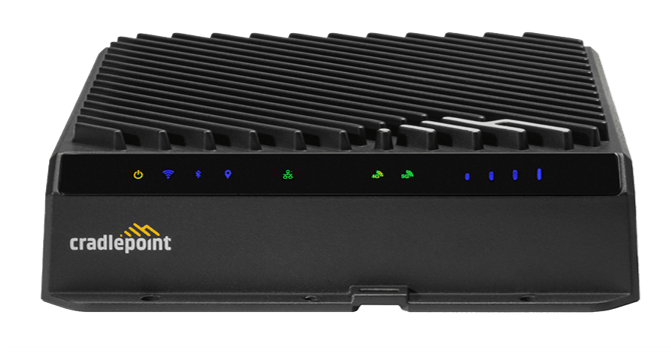

• Cloud managed 4G / 5G WiFi6 Router
• Vehicle certification
• Extension to 2nd modem for simultaneous dual-carrier connectivity
• Edge Computing
• Enable unified edge security with application aware multi-zone firewalls, IDS/IPS, and internet security

• Global certifications for Zone 1/21 and Div.1
• Rugged design and easy to use
• Can be connected via Bluetooth^TM to any device
• Flexible on- and offline scanning and changeable head modules
• Powerful battery for 12-hour shifts

• Efficient cooperation with mobile devices such as the Smart-Ex 02

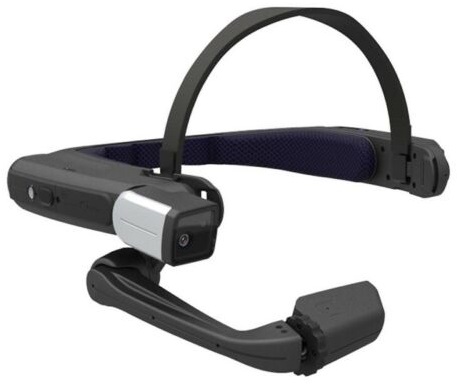

• Dual camera system with HD optics and thermal imaging technology
• Remote collaboration with experts via Onsight Connect possible
• Integrated laser pointer and light ring
• Record video and store pictures in a central knowledge base

• Worldwide approvals for Zone 1/21, 2/22, and Class 1 / Div 1 & Div 2
• Protected in all situations: Special programmable buttons & Lone Worker Protection (LWP)
• Always and everywhere applicable: Excellent readability of the display even in direct sunlight and a long battery life
• Fully WEA 2. compliant, supporting WEA 3.0 features/ functionality except advanced geo location tagging
• Android zero-touch enabled device

• Worldwide approvals for Zone 1/21, 2/22, and Class 1 / Div 1 & Div 2
• Protected in all situations: Special programmable buttons & Lone Worker Protection (LWP)
• Always and everywhere applicable: Excellent readability of the display even in direct sunlight and a long battery life
• Fully WEA 2. compliant, supporting WEA 3.0 features/ functionality except advanced geo location tagging
• Android zero-touch enabled device

• Android Enterprise Recommended verified device
• Over 20 different LTE frequency bands and Global Ex- and regulatory certifications
• High performance operating system Android 9 with Smart-Ex® 02
• Waterproof magnetic USB 2.0 connection
• Replaceable 4400 mAh battery

• Android Enterprise Recommended verified device
• Over 20 different LTE frequency bands and Global Ex- and regulatory certifications
• High performance operating system Android 9 with Smart-Ex® 02
• Waterproof magnetic USB 2.0 connection
• Replaceable 4400 mAh battery

• Cloud gateway with SSL/TLS encryption
• remote monitoring and maintenance
• support for SPS protocols

• Cloud gateway with SSL/TLS encryption
• remote monitoring and maintenance
• support for SPS protocols

• LTE cloud gateway with SSL/TLS encryption
• Ethernet
• Remote control and maintenance
• Alarm system
• Data logging
• Supports webserver
• SPS protocol

• Cloud gateway with SSL/TLS encryption
• Ethernet
• Remote control and maintenance
• Alarm system
• Data logging
• Supports webserver
• SPS protocol

• LTE cloud gateway with SSL/TLS encryption
• Ethernet and WLAN module
• Remote control and maintenance
• Alarm system
• Data logging
• Supports webserver
• SPS protocol

• Cloud gateway with SSL/TLS encryption
• Ethernet and WLAN module
• Remote control and maintenance
• Alarm system
• Data logging
• Supports webserver
• SPS protocol

• LTE-capable, cloud gateway
• Remote steering/control, maintenance
• Alarm settings
• Data logging capability
• Supports web server
• SPS protocol

• Support 4G communication
• Support GPS / Beidou positioning
• Temperature collection range: -30 - 85 ℃
• Humidity collection range: 0 - 100% RH
• Optional modules - Tilt and Movement Sensor (price on demand)
• Optional Theft Sensor (price on demand)

• IIoT gateway with most PLC protocols
• Flexible WAN interface: Ethernet, 4G, 3G, WiFi
• High performance for data processing
• OPC UA & Modbus server
• Compact and robust design, ideal for electrical cabinet

• Integrated Power Connector
• SIM Socket
• SMA Socket
• Gigabit Ethernet
• System LEDs & Reset button

• IoT-Gateway for condition monitoring use cases in Industry 4.0, IoT, and Industrial-IoT
• Standard interfaces allow for quick integration with existing machines and production process
• IP20 protection

• LTE router
• Compact design
• Router and switch in one device
• IT security: VPN, stateful firewall, Quick start for VPN service INSYS Connectivity Service
• Monitoring App for monitoring Siemens LOGO!TM, S7 and Modbus TCP devices

• Wi-Fi access point and client
• RS232, RS485
• Digital I/Os
• LTE version with dual SIM
• Sleep mode for self-sufficient applications
• Compact, flat housing
• Wall and DIN rail mounting
• Installation in control cabinets and small distributors

• 4G mobile router
• Surveillance and control of industrial facilities
• 5x Ethernet 10/100BT
• 1x serial RS232
• 2 digital inputs, 1 digital output

• RS232 serial interfaces
• Digital I/Os (optional)
• Sleep mode for energy-saving applications
• Compact, flat housing
• Wall and rail mounting
• Installation inside control cabinets and small distributors

• RS232 serial interfaces
• Digital I/Os (optional)
• Sleep mode for energy-saving applications
• Compact, flat housing
• Wall and rail mounting
• Installation in control cabinets and small distributors

• Small and powerful
• Industrial design with high temperature range
• High IT-security and various routing functions
• Various flexible mounting options
• Easy to integrate and to roll out

• Flexible, modular and industrial router system
• 5G-ready
• Extensions for several interfaces (digital and analog I/Os, Ethernet, serial) and WAN technologies
• High IT security and various routing functions
• Edge-computing & IoT-ready

• Flexible, modular and industrial router system
• 5G-ready
• Extensions for several interfaces (digital and analog I/Os, Ethernet, serial) and WAN technologies
• High IT security and various routing functions
• Edge-computing & IoT-ready

• LTE 4G
• 2 x SIM, GNSS
• Programmable, Linux
• Data storage
• Serial interfaces
• 1-wire interface
• I/O interfaces
• VPN

• Programmable sensor data terminal with 4G LTE modem
• out of the box ready for mobile internet communications
• includes Node-RED™ nodes for all hardware interfaces
• configuration via web interface
• data storage on internal flash or micro SD card

• Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
• Dual-SIM slots
• 2 auto-sensing 10/100/1000 Mbps Ethernet ports
• Integrated LTE Cat. 4 module
• 1 CAN port supports CAN 2.0A/B

• Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
• Intel Atom Quad-core E3845 processor
• Dual storage (SD and CFast slots)
• Dual independent displays (VGA + display port)
• Variety of interfaces: 2 serial ports, 4 Giga LANs, 4 DIs, 4 DOs, 2 USB 2.0 ports

• Intel Atom Quad-core E3845 processor
• Dual storage (SD and CFast slots)
• Dual independent displays (VGA + display port)
• Variety of interfaces: 2 serial ports, 4 Giga LANs, 4 DIs, 4 DOs, 2 USB 2.0 ports
• Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• Intel® Core™ i7-7600U Processor
• 3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
• 2 built-in DDR4 memory slots; total capacity up to 32 GB
• Built-in TPM 2.0 module
• Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• ARMv7 Cortex-A8 600-1000 MHz processor
• Auto-sensing 10/100 Mbps Ethernet ports
• Software-selectable RS-232/422/485 ports supporting all signals
• Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
• Moxa Industrial Linux with 10-year superior long-term support
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• ARMv7 Cortex-A8 1000 MHz processor
• Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1
• Bluetooth 4.2 support
• Industrial CAN 2.0 A/B protocols supported
• Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• ARMv7 Cortex-A8 1000 MHz processor
• Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1
• Bluetooth 4.2 support
• Industrial CAN 2.0 A/B protocols supported
• Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• ARMv7 Cortex-A8 1000 MHz processor
• Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1
• Bluetooth 4.2 support
• Industrial CAN 2.0 A/B protocols supported
• Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• ARMv7 Cortex-A8 1000 MHz processor
• Dual auto-sensing 10/100 Mbps Ethernet ports
• 4 software-selectable RS-232/422/485 ports supporting all signals
• Dual CAN ports with industrial CAN 2.0 A/B protocol supported
• Mini PCIe socket for Wi-Fi/cellular module and SD slot for storage expansion
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• ARMv7 Cortex-A8 1000 MHz processor
• Dual auto-sensing 10/100 Mbps Ethernet ports
• Dual CAN ports with industrial CAN 2.0 A/B protocol supported
• Mini PCIe socket for Wi-Fi/cellular module and SD slot for storage expansion
• -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
• TeamViewer IoT (upon request): Moxa-TeamViewer Integration
• IIoT, Security and OT Networking training from Moxa Technical College

• Moxa Industrial Linux with 10-year superior long-term support
• LTE-ready computer
• Dual-SIM slots
• 2 auto-sensing Ethernet ports
• Integrated LTE Cat. 4 module with US/EU/APAC band support
• 1 CAN port supports CAN 2.0A/B
• microSD socket for storage expansion
• Programmable LEDs and a programmable button
• -40°C to 85°C wide temperature range

• Max. 100 BLE beacons for environmental monitoring
• 10 digital HS Inputs, Modbus protocol support
• DIN rail switchboard installation
• Telekom Cloud of Things for easy management
• LTE-M cellular technology
• SIM-free selection

• 10 Flex inputs (4...20mA, 0...10V, PT1000, alarm switch)
• 10 Modbus sensors / machines
• DIN rail switchboard installation
• Telekom Cloud of Things for easy management
• LTE-M cellular technology
• SIM-free selection

• Modbus protocol support
• 2 analogue sensors (digital, analogue)
• DIN rail switchboard installation
• Telekom Cloud of Things for easy management
• Cloud Fieldbus for easy management
• LTE-M cellular technology
• SIM-free selection

• Modbus TCP/IP protocol support
• DIN rail switchboard installation
• Telekom Cloud of Things - Cloudfieldbus for easy Mng.
• LTE cellular technology
• SIM - free selection

• Ruggedized IP66 and MIL-STD 810G certified handsfree design for endless professional uses, and quick to deploy
• All applications, files, or browser-based solutions accessible over voice commands, with noise cancellation and voice recognition up to 95dBA
• Compatible for combination with safety helmets, caps, and goggles
• Connectivity to Internet available via WiFi and/or LTE USB-stick

---- COVID19 Use-case:

• Massive travel restrictions due to the pandemic have slowed or even halted businesses due to malfunctioning pieces of heavy equipment. An operator or technician often requires over-the-shoulder guidance to troubleshoot issues.
• By deploying RealWear's industrial strength, assisted reality devices for the frontline workforce, technicians can consult and collaborate remotely with suppliers and engineers for quality inspections, maintenance, and outages.
• Analyses can be done both safely and efficiently, using live, hands-free video calls showing a remote expert what the workers see in real-time, avoiding travel and improving productivity.

• Ruggedized, intrinsically safe ATEX Zone 1 and CSA C1/D1-certified head-mounted device
• IP66-compliant for use in wet, dusty, hot, dangerous environments
• High-resolution micro display fits below user's line of sight and views like a 7" tablet
• Works with powerful software applications for completely handsfree voice control
• Connectivity to Internet via WiFi

---- COVID19 Use-case:

• Massive travel restrictions due to the pandemic have slowed or even halted businesses due to malfunctioning pieces of heavy equipment. An operator or technician often requires over-the-shoulder guidance to troubleshoot issues.
• By deploying RealWear's industrial strength, assisted reality devices for the frontline workforce, technicians can consult and collaborate remotely with suppliers and engineers for quality inspections, maintenance, and outages.
• Analyses can be done both safely and efficiently, using live, hands-free video calls showing a remote expert what the workers see in real-time, avoiding travel and improving productivity.

• connectivity via 2G, 4G, LAN or WLAN
• usage as router or mobile hotspot
• track&trace: positioning data, velocity, direction and altitude as well as CAN data
• support for a lot of interfaces e.g. I2C, CAN, 1-wire, RS232 etc.

• Can be used in M2M-communication and machine control
• Application as industrial router
• Stand-alone control possible
• Use in monitoring and feedback control
• Easy to expand via Backplane

• High-tech IIoT device for forklift tracking
• Load state, movements, shocks (optional: lifting height, localization via beacons)
• Edge computing & AI
• Remote updates & settings (over the air)
• Long battery lifecycle

• High-tech IIoT devices for localization of load carriers
• GNSS & radio cells triangulation
• Edge computing & AI
• Remote updates & settings (over the air)
• Long battery lifecycle

• Configure device behavior to fit your use case (12 parameters)
• QR Code for efficient onboarding
• IP67 rated with 5+ years of operational life
• Cell, WiFi, and GPS positioning
• Communication over LTE-M & NB-IoT
• Button with LED Feedback
• Motion and button triggered messages
• LED feedback on device status and battery
• LiPo (USB-C recharge) or AA Battery option
• Over-the-air firmware updates and device configurations

• LTE Cat.4 with speeds up to 150 Mbps
• Automatic switching to available backup connection
• Wireless access point with Hotspot functionality
• Compact size, easy integration
• Digital input/output for remote monitoring and control
• Teltonika Remote Management System-compatible

• LTE Cat.4 with speeds up to 150 Mbps
• Dual SIM – significantly reduce roaming costs
• Automatic switch to available backup connection
• 4x Ethernet ports with VLAN functionality
• Wireless access point with hotspot functionality
• Teltonika Remote Management System-compatible

• LTE Cat.4 with speeds up to 150 Mbps
• RS232/RS485 serial communication interfaces
• Dual SIM – significantly reduce roaming costs
• Multiple inputs/outputs for remote monitoring and control
• GNSS positioning with geofencing functionality
• Teltonika Remote Management System-compatible

• LTE Cat 6 with speeds up to 300 Mbps
• Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
• Dual-SIM with auto Failover
• Backup WAN and other SW features
• Gigabit Ethernet with speeds up to 1000 Mbps

• Robust LTE-M / NB-IoT / 2G connection capability
• High capacity rechargeable battery
• Temperature detection / Humidity detection / Flight detection
• Low cost / Small size / Simple Installation
• Remote configuration of power profile
• Emergency button / G-Shock
• Friendly web UI management features and data monitoring

• 3GPP^TM LTE Cat.1 with 3G and 2G fallback
• Single global SKU
• USB 2.0 interface and USB-powered for quick and easy device integration
• Built-in antenna for simplest installation and best RF performance
• Type approved
• Rugged design, extended temperature range
• Long stable lifecycles
• Embedded Gemalto eSIM option
• Custom firmware option
• Wall-mounting option for long-term device integration
• Firmware over-the-air updates
• Remote configuration and diagnostics
